Access Control

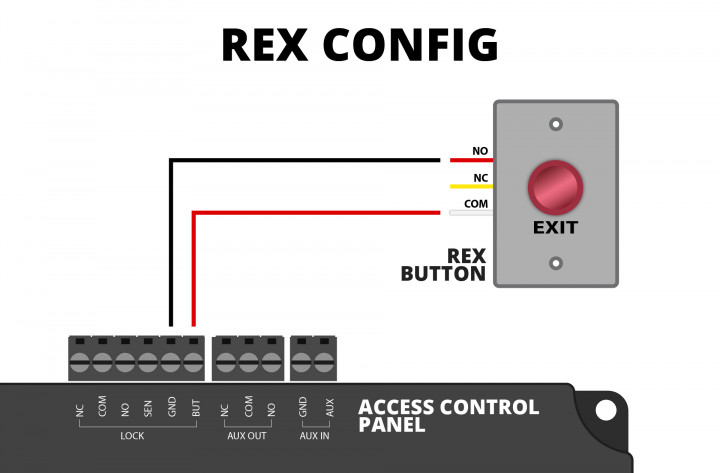

Diagram below will show wiring for Exit button to the Atlas Panel. This Exit button does Not require any power. Recommended Wire: 18 gauge stranded, pure copper.

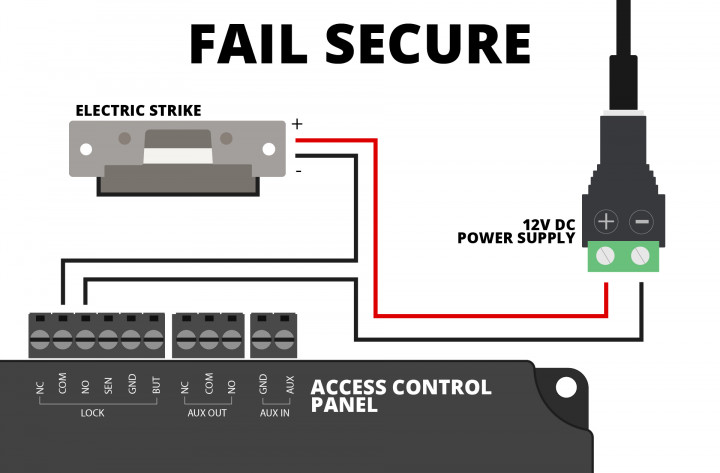

Below image shows the wiring diagram for Electric Strike with Zkteco panel. Keep in mind that this diagram is for strike in Fail Secure Mode. Fail Secure: When power is lost to the strike, the strike will remain locked. Recommended wire: 18 Gauge stranded wire pure copper.

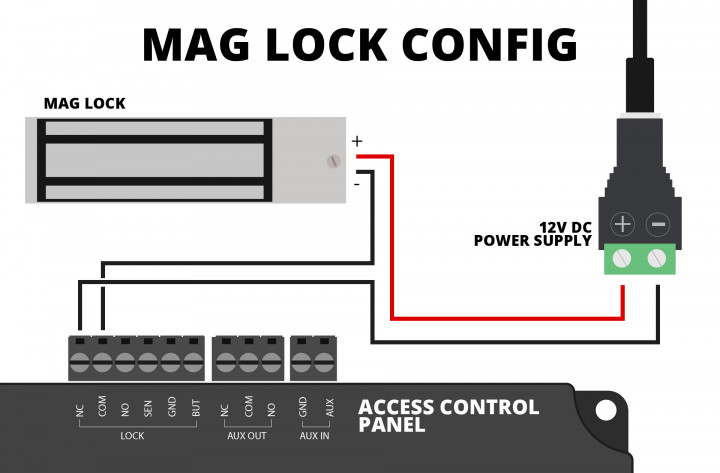

Below image shows the wiring of maglock with a Zkteco Atlas Panel. Recommended wire: 18 Gauge Stranded pure copper.
